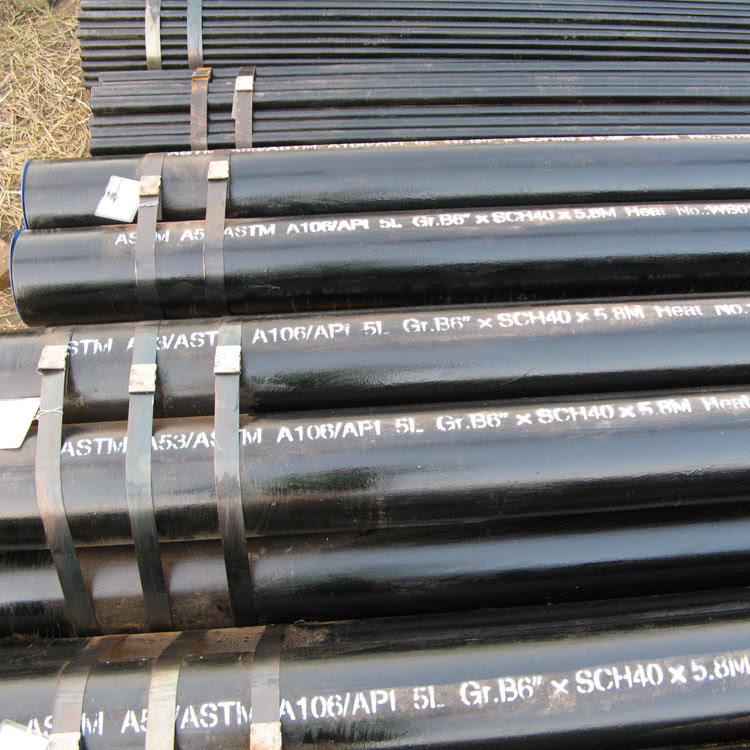

ASTM A53 carbon steel pipe covers seamless, welded, black, and hot-dipped galvanized pipe. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Standard | BS 1387, BS EN 10297, BS 4568, BS EN10217, JIS G3457 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Grade | 10#-45#, Cr-Mo alloy, 15NiCuMoNb5, 10Cr9Mo1VNb, A53-A369 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Out diameter | 21.3 - 610 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wall thickness | 2 - 50 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Section Shape | Round | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Application | Fluid Pipe | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Surface Treatment | varnished,cap,marking | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | API | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ST37/ST44 Precision Seamless Steel Pipe | DIN 2448/2391/1629/17100 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DIN 2391/2448/1629,ST37/ST52 steel pipe | ST37/ST52 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hot Rolled Seamless Steel Pipe | ASTM A 53/106/API 5L B | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cold Drawn Seamless Steel Boiler Tube | ASTM A106/DIN 17175/2448 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Carbon Seamless Steel Pipe | ASTM A53/106/API 5L B |
ASTM A53 carbon steel pipe covers seamless, welded, black, and hot-dipped galvanized pipe. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ASTM A53 GRADE A&B | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
This specification covers seamless and welded black and hot-dipped galvanized steel pipe in nominal size 1/8” in. To 20 in. Inclusive (3.18mm-660.4mm) with nominal (average) wall thickness . | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ASTM A106 GRADES A, B & C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
This specification covers seamless carbon steel pipe for high temperature service in nominal size 1/8 in. To 26 in. Inclusive (3.18mm-660.4mm)with nominal (average) wall thickness . | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Grade A Carbon 0.25% max. Manganese 0.27 to 0.93% | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Grade B Carbon 0.30% max. Manganese 0.29 to 1.06% | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Grade C Carbon 0.35% max. Manganese 0.29 to 1.06% | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
All grades have the same values for Sulphur 0.058% max. Phosphorus 0.048% max. Silicon 0.20% min. |
Chemical Composition (%): | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standard | Grade | C | Si | Mn | P | S | Ni | Cr | Cu | Mo | V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ASTM A53M | A | =0.25 | - | =0.95 | =0.05 | =0.045 | =0.40 | =0.40 | =0.40 | =0.15 | =0.08 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
B | =0.30 | - | =1.2 | =0.05 | =0.045 | =0.40 | =0.40 | =0.40 | =0.15 | =0.08 |
Mechanical Properties | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standard | Grade | Tensile Strength | Yield Strength | Elongation % | ASTM A53M | A | =330 | =205 | See table 3 of ASTM A53 |
Standard | Grade | C | Si | Mn | P | S | Ni | Cr | Cu | Mo | V |
---|---|---|---|---|---|---|---|---|---|---|---|
ASTM A53M | A | =0.25 | =0.10 | 0.27-0.93 | =0.035 | =0.035 | =0.40 | =0.40 | =0.40 | =0.15 | =0.08 |
B | =0.30 | =0.10 | 0.29-1.06 | =0.035 | =0.035 | =0.40 | =0.40 | =0.40 | =0.15 | =0.08 | |
C | =0.35 | =0.10 | 0.29-1.06 | =0.035 | =0.035 | =0.40 | =0.40 | =0.40 | =0.15 | =0.08 |
Mechanical Properties | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standard | Grade | Tensile Strength | Yield Strength | Elongation % | ASTM A53M | A | =330 | =205 | See table 4 of ASTM A106 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
B | =415 | =240 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
C | =485 | =275 |
